Stationary Injection Systems

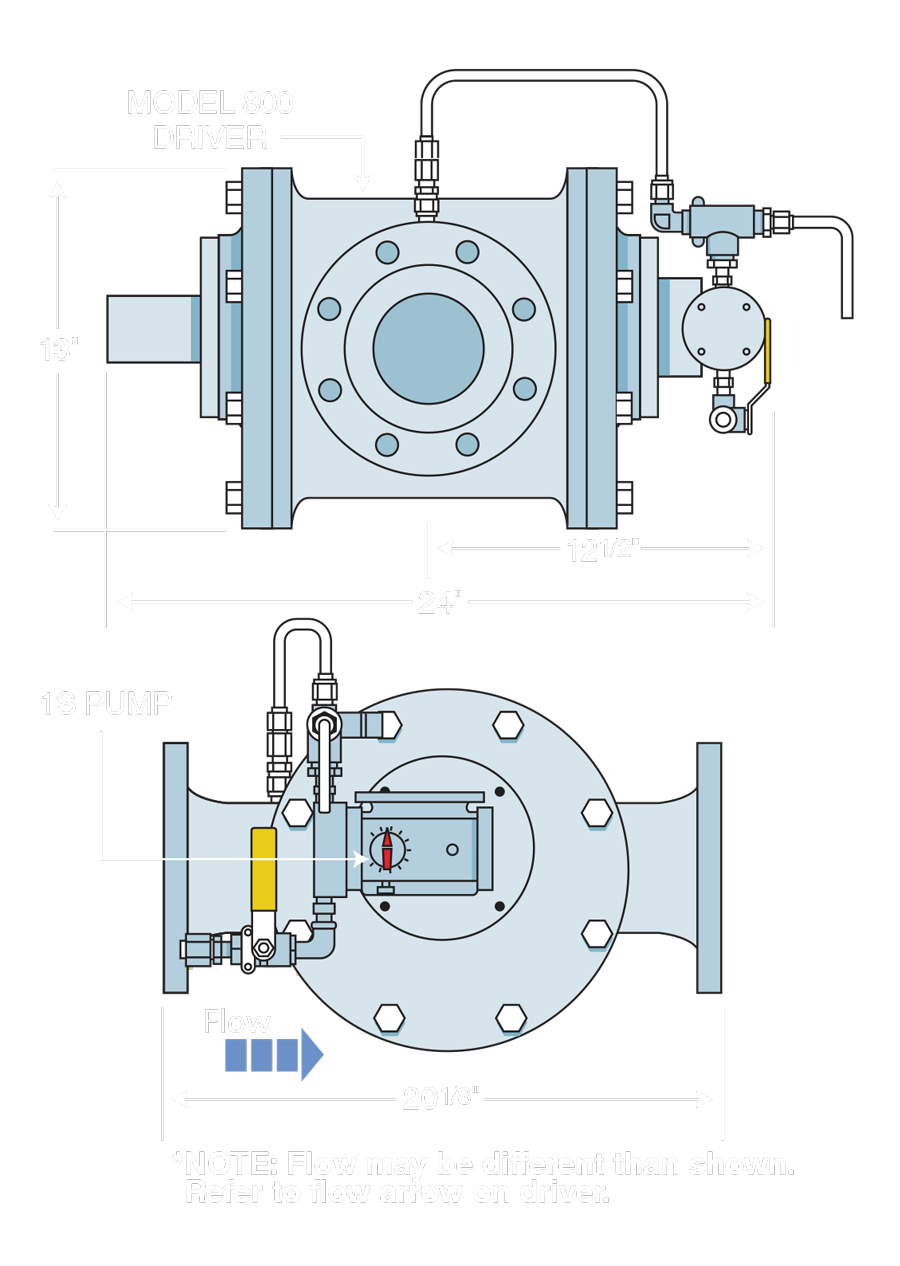

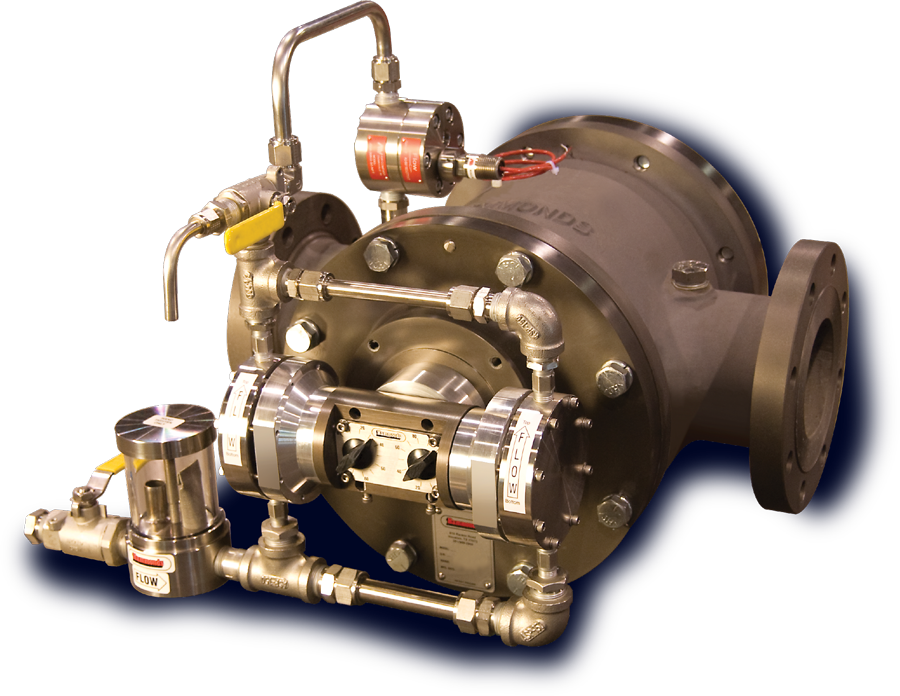

Model 800

The 800 offers precision injection of additives meeting the requirements of delivery terminals, high-volume delivery vehicles and truck loading racks. Self contained and requires no product meters or pulsars.

Request a Quote

Simple, economical installation
Guaranteed precision blending
No power or meter required

4” 150# ANSI connections
Passive, automatic operation

Flooded suction required
Number of Additives: 1 Standard, up to 4 optional
4" 150# connection standard (other connections available, consult factory for details)
Injection Ratios: 0-4000 ppm depending upon application
75-700 gpm continuous operation
Product Temperature Range: -40°F to +250°F (-40°C to +121°C)
Maximum product line pressure: 150 psi. Higher pressures available with upgraded flanges installed
Product Viscocities: up to 10,000 ssu
Fuels, Oils, Additives and Liquid Gases
Duty Cycle: Intermittent

Aluminum casting; carbon steel fabrication optional
Metering Pump: All wetted parts 300 series stainless steel
Elastomers: Aflas, Viton, and Teflon; other elastomers available upon request
Mechanical Seal: Carbon on Ceramic, optional Tungsten on Carbon
Upgrade to Hammonds "Smart" System
